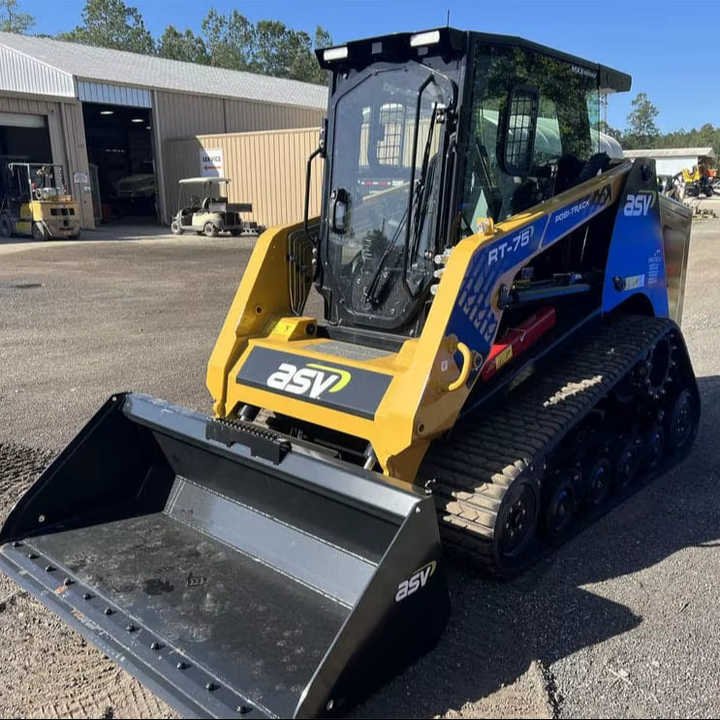

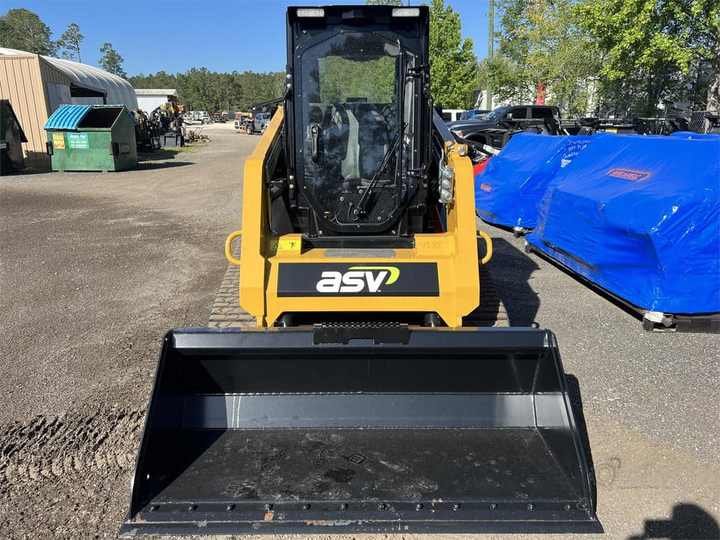

2023 ASV Posi-Track RT-75 MAX Skid Steer

Category	Specification
General
Model	ASV RT-75 MAX
Loader Arms	Radial
Operating Weight	9,060 lbs (4,110 kg)
Rated Operating Capacity	2,750 lbs (1,247 kg) @ 35% tipping load
Tipping Load	7,857 lbs (3,564 kg)
Ground Pressure	3.5 psi (24.1 kPa) standard; 3.2 psi (22 kPa) optional tracks
Travel Speed	6.3 mph (10.1 km/h) single speed; 9.3 mph (15 km/h) two-speed
Engine
Engine Model	Cummins QSF2.8, 4-cylinder, turbocharged, intercooled diesel
Gross Power	74 hp (55 kW) @ 2,800 rpm
Peak Torque	221 ft-lb (300 Nm)
Displacement	171 cu in (2.8 L)
Emissions Compliance	U.S. EPA Tier 4 Final
Cooling System	Hydraulically driven fan, anti-freeze filled radiator

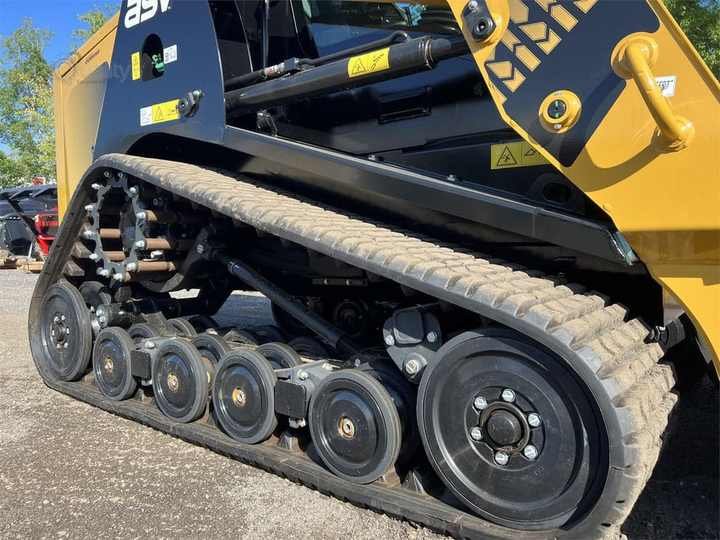

Undercarriage
Track Width	18 in (457 mm) standard; optional 20 in (508 mm)
Track Length on Ground	71 in (1,803 mm)
Ground Contact Area	2,556 in² (1.65 m²)
Suspension	Two independent torsion axles per undercarriage
Roller Wheels	24 high-density polyurethane and rubber wheels per track
Front & Rear Rollers	15 in (381 mm) diameter
Mid-Rollers	10 in (254 mm) diameter
Hydraulic System
Auxiliary Flow (Low)	22.6 gpm (85.5 L/min)
Auxiliary Flow (High)	35.7 gpm (135 L/min)
System Pressure	3,300 psi (22,750 kPa)
Controls	Pilot hydraulic joystick; intermittent via joystick button or continuous via console switch
Couplers	Push-to-connect quick couplers mounted on loader arms
Electrical System
Voltage	12 V
Battery	950 CCA
Alternator	120 Amp
Cabin Outlet	1 x 12 V port

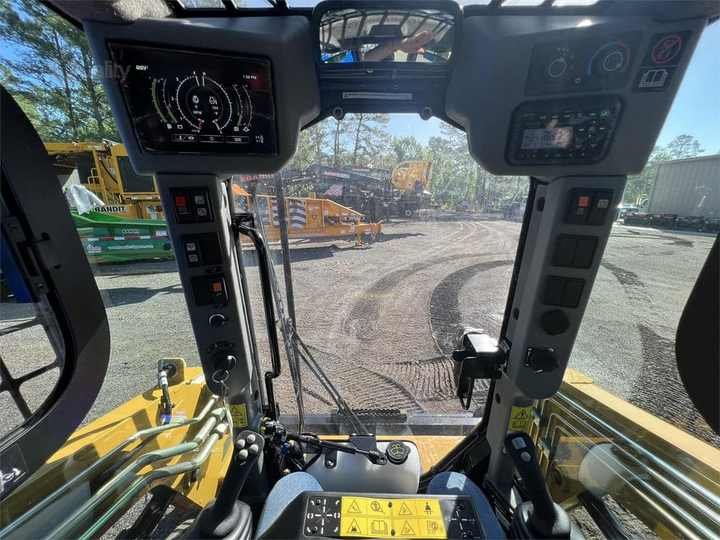

Operator Station
Seat	Adjustable vinyl with built-in operator presence switch and lap bar
Controls	Right-hand pilot hydraulic joystick for loader functions; left-hand joystick for drive control
Display	Engine RPM, oil pressure, hydraulic temperature, coolant temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging
ROPS/FOPS	Meets ISO 3471, ISO 6683, Level 1, SAE J2292; FOPS meets ISO 3449 Level I & II
Illumination	2 forward-facing halogen lights, 2 adjustable rear-facing halogen lights, interior light
Service Capacities
Fuel Tank	18.4 gal (69.7 L)
Hydraulic Tank	8 gal (30.3 L)
Engine Coolant	5.5 gal (20.8 L)
Engine Oil	9 quarts (8.5 L)
Dimensions
Length (with bucket)	148 in (3,759 mm)
Height to Bucket Pin	125.5 in (3,188 mm)
Machine Height	87 in (2,210 mm)
Width	70 in (1,778 mm)
Ground Clearance	14.4 in (366 mm)
Reach at Dump Height	24 in (610 mm)
Rear Angle of Departure	38°
Bucket Rollback at Ground Level	41°
