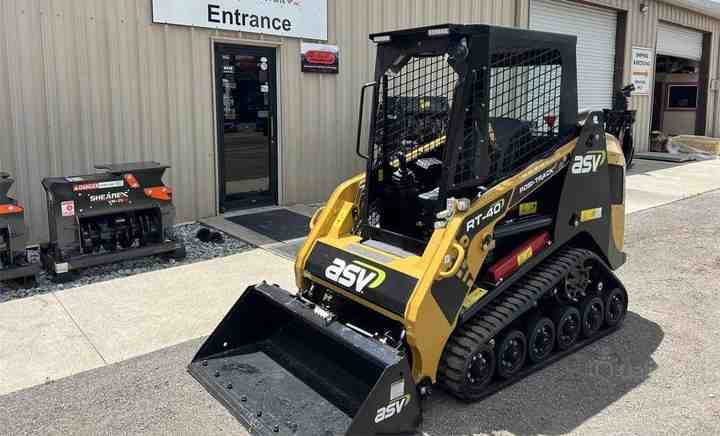

2024 ASV RT-40 Posi-Track Skid Steer Loader

Category	Specification

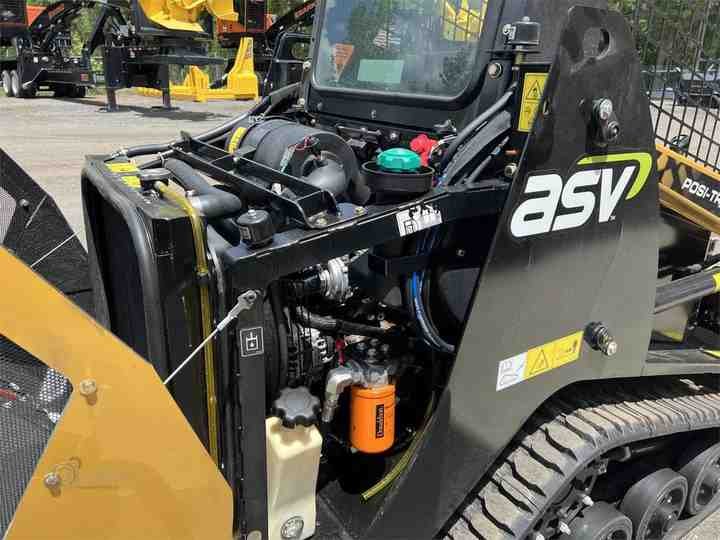

Engine	Model: Yanmar 3TNV86CT Type: 3-cylinder, turbocharged diesel Displacement: 1.57 L (95.7 in³) Power: 38.2 hp (28.5 kW) Torque Peak: 126.9 Nm (93.6 ft-lb)
Performance	Operating Weight: 1,894 kg (4,175 lbs) Rated Operating Capacity (35%): 422 kg (931 lbs) Tipping Load: 1,206 kg (2,660 lbs) Ground Pressure: 24.1 kPa (3.5 psi) Max Travel Speed: 11.4 km/h (7.1 mph)
Dimensions	Overall Length with Bucket: 2,866 mm (112.7 in)Machine Width: 1,225 mm (48.3 in)Machine Height: 1,920 mm (75.5 in) Height to Bucket Pin: 2,565 mm (101 in)Ground Clearance: 273 mm (10.8 in)
Undercarriage	Track Width: 279 mm (11 in) Length of Track on Ground: 1,397 mm (55 in) Roller Wheels per Track: 12 high-density polyurethane Roller Wheel Diameter: 254 mm (10 in) Suspension: 2 independent torsion axles per undercarriage
Hydraulics	Auxiliary Pump Flow: 50.35 lpm (13.3 gpm) System Pressure: 20,684 kPa (3,000 psi)<br>Controls: Pilot hydraulic joystick control with variable auxiliary flow
Electrical System	Battery: 12V, 525 CCA Alternator: 60 Amp Port Outlet (Inside Cab): 1 – 12V
Operator Station	ROPS/FOPS: Meets ISO 3471:2008, ISO 6683:2005, ISO 3449:2005 Level 1 Controls: Right-hand pilot hydraulic joystick for loader lift/tilt; Left-hand pilot hydraulic joystick for drive control Display: Multifunctional display indicating fuel level, engine oil pressure, hour meter, battery voltage, hydraulic oil temperature, trip meter, tachometer, engine coolant temperature; supports multiple languages
Service Capacities	Fuel Tank: 49.2 L (13 gal)<br>Hydraulic Tank: 13.2 L (3.5 gal)<br>Engine Coolant: 6.8 L (1.8 gal)<br>Engine Oil (Including Filter): 7 L (7.4 quarts)
